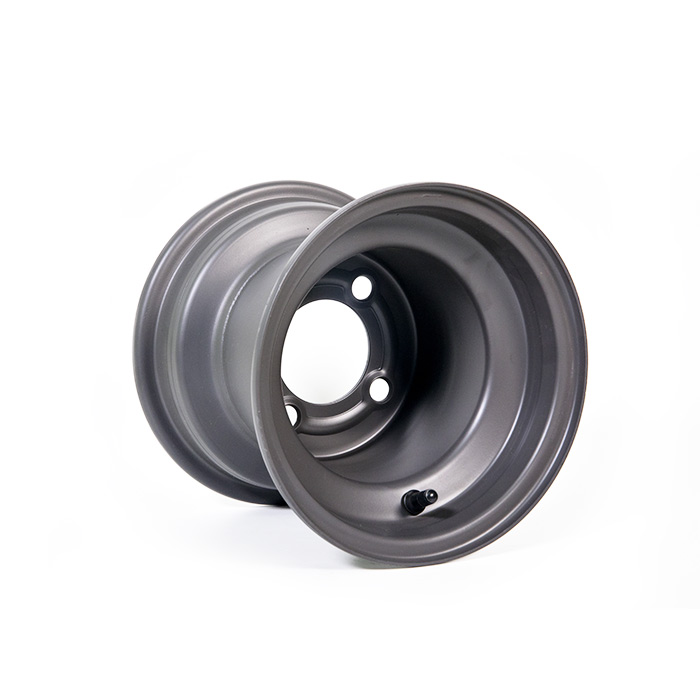

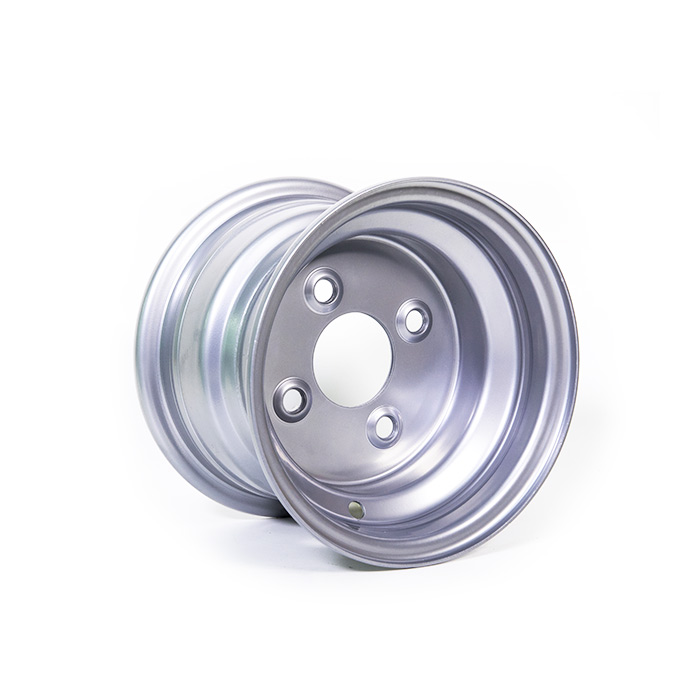

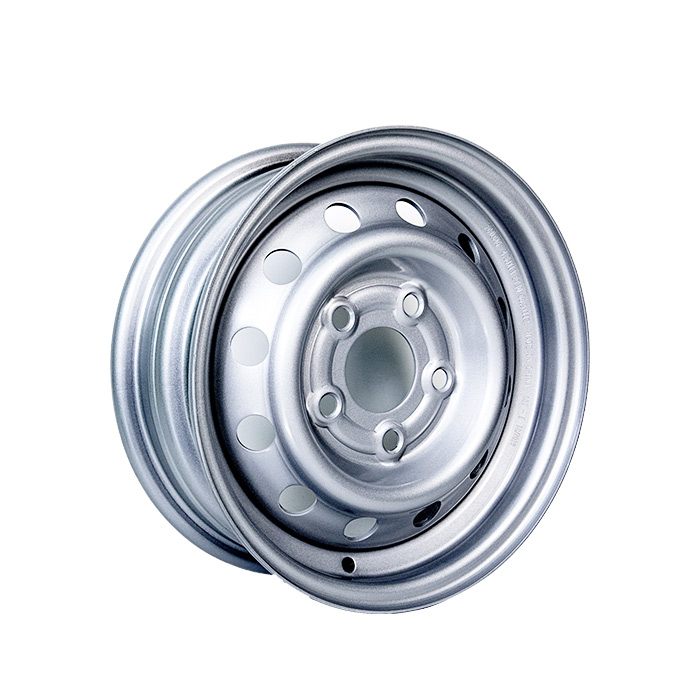

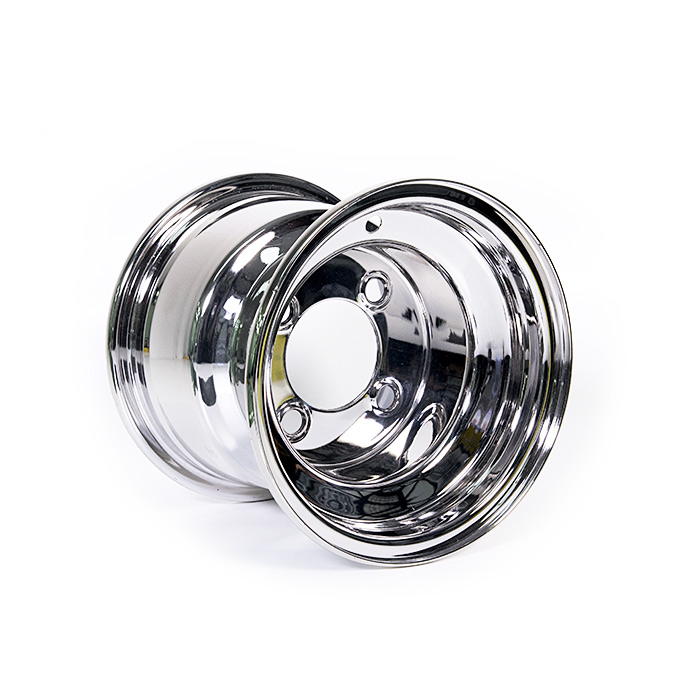

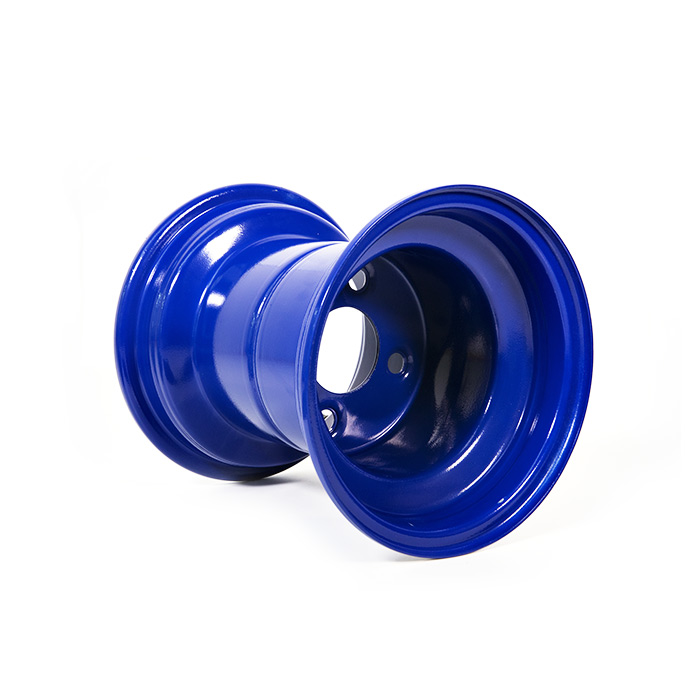

FORLONG PROVIDES A FULL RANGE STEEL WHEELS FOR TOUR CART
From 6” to 14”, wheel with hub tube fit with bearing or PCD connection
CUSTOMIZATION
Forlong accept the customization of the wheels for the Tour Cart. Please contact us for more information.
PAINT
Corrosion resistance
Reach: Complied with the latest Reach regulation of European Chemical Agency (ECHA), Which do not contain any of the Substances of Very High Concern(209 SVHCs) listed in the Candidate List with a concentration above 0,1%.
ETRTO STANDARD
All wheels are produced according to ETRTO standard
Complete wheels(Wheel assembly)
Forlong can provide the tyre and wheels combination.
We assemble tyres and wheel for customers with top quality pneumatic tyres, Such as LINGLONG,GOODRIDE,WESTLAKE,WANDA...
Just part of Forlong wheel listed here, for more or customization please contact us direct.
| TOUR CARTS / SIGHTSEEING CAR WHEEL | ||||||
|
Wheel
Size
|
Assembled Tyre Size |
Bolt Hole | Bold hole shape |
PCD (mm) |
Central Hole Diameter (mm) |
Offset (mm) |
| 4.50X6 | 15X6.00-6 | 3 | 90 | 55 | 0 | |
| 3.75X8 |
480-8 16X6.5-8 16X7.5-8 |
4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 3.75X8 | 5 | 60°-15 | 114.3 | 71.5 | 0 | |
| 5.375X8 | 16X6.50-8 | 4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 5.375X8 | 5 | 60°-15 | 114.3 | 71.5 | 0 | |
| 7.00X8 | 18x8.50-8 | 4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 7.00X8 | 5 | 60°-15 | 114.3 | 71.5 | 0 | |
| 9.00X8 | 20X10.00-8 | 4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 9.00X8 | 5 | 60°-15 | 114.3 | 71.5 | 0 | |
| 3.50X10 | 5.00-10 | 4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 3.50X10 | 4 | 12.5 | 139.7 | 95 | 0 | |
| 6.00X10 | 20.5X8-10 | 4 | 60°-14.5 | 101.6 | 71.5 | 0 |
| 6.00X10 | 5 | R14-18.5 | 140 | 94 | 0 | |
| 7.00X10 | 22X9-10 | 4 | 60°-14.5 | 101.6 | 64 | 0 |
| 7.00X10 | 5 | 60°-15 | 114.3 | 76 | 0 | |
| 8.00X10 | 22X9-10 | 4 | 60°-14.5 | 101.6 | 64 | 0 |
| 8.00X10 | 5 | 60°-15 | 114.3 | 76 | 0 | |
| 4JX12 | 5.00-12 | 4 | 60°-14.5 | 101.6 | 64 | 0 |
| 4JX12 | 5 | 60°-14.5 | 114.3 | 71.6 | 0 | |
| 6JX12 |
21X8-12 23X8-12 |
4 | 60°-14.5 | 101.6 | 64 | 0 |
| 6JX12 | 5 | 60°-14.5 | 114.3 | 71.6 | 0 | |
| 7.00X12 |
21X9-12 225/80-12 |
4 | 60°-14.5 | 101.6 | 64 | 0/±20 |
| 7.00X12 | 5 | 60°-14.5 | 114.3 | 71.6 | 0/±20 | |
| 7.00X12 | 5 | 60°-14.5 | 139.70 | 101.6 | 0/±20 | |
| 4JX13 |
155R13 165R13 |
4 | 60°-14.5 | 101.6 | 64 | 0 |
| 4JX13 | 5 | 60°-14.5 | 114.3 | 71.6 | 0 | |
| 4JX13 | 4 | 60°-15.5 | 100 | 57 | 30 | |
| 4JX13 | 5 | R12-15.5 | 112 | 66.5 | 30 | |
| 5JX14 |
185R14 195R14 |
4 | 60°-14.5 | 101.6 | 64 | 0 |
| 5JX14 | 5 | 60°-14.5 | 114.3 | 71.6 | 0 | |
| 5JX14 | 4 | 60°-15.5 | 100 | 57 | 30 | |
| 5JX14 | 5 | R12-15.5 | 112 | 66.5 | 30 | |
