FORLONG PROVIDES A FULL RANGE WHEELS FOR ATV TRAILERS

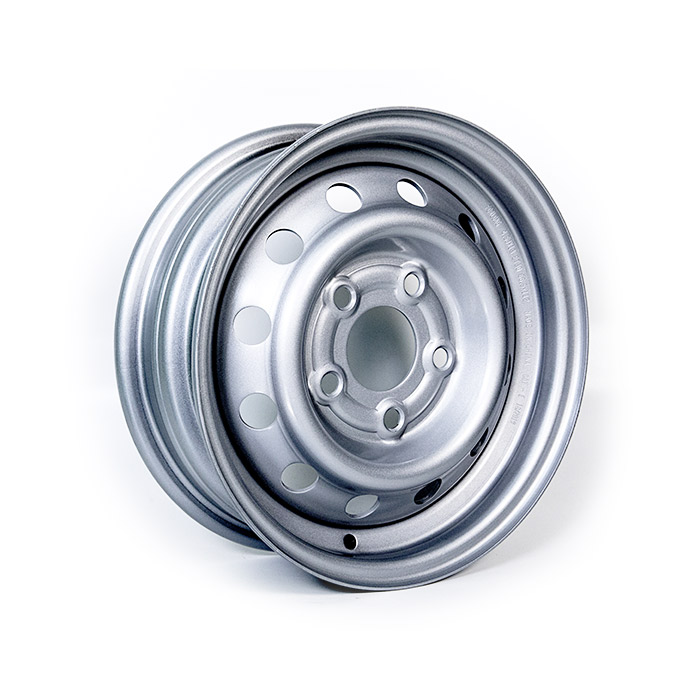

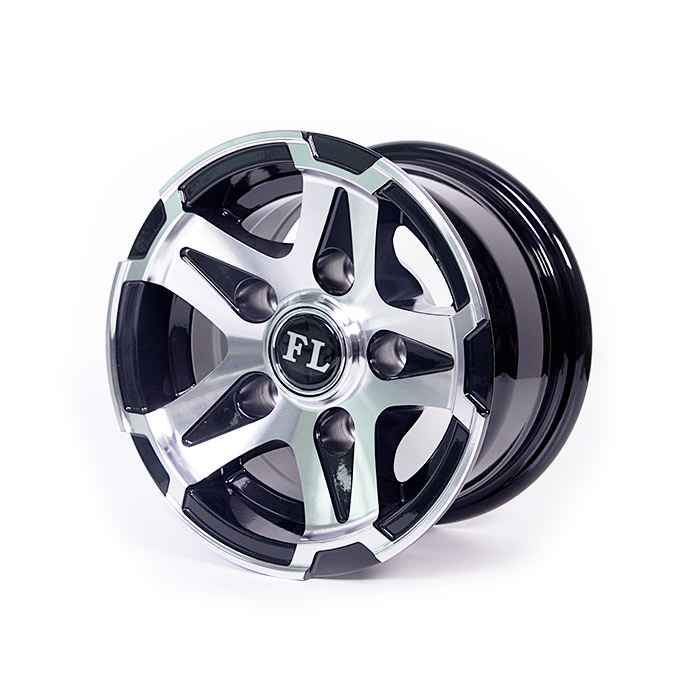

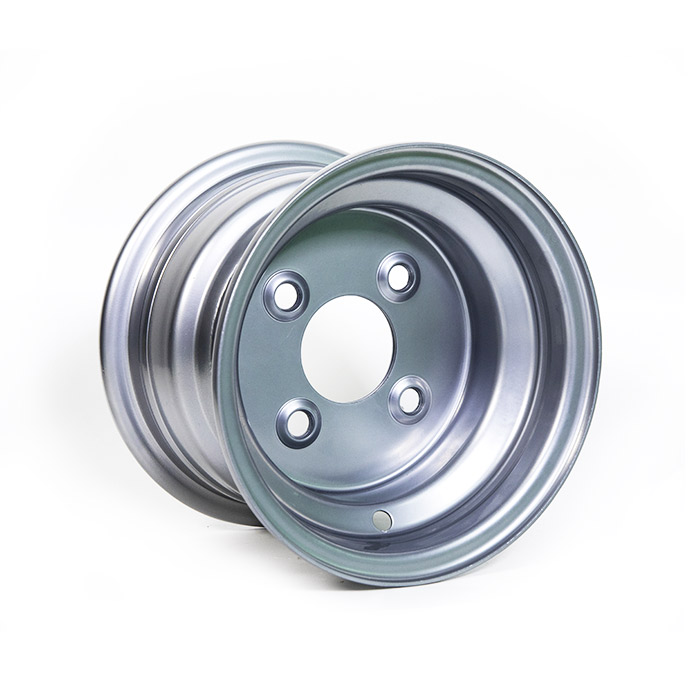

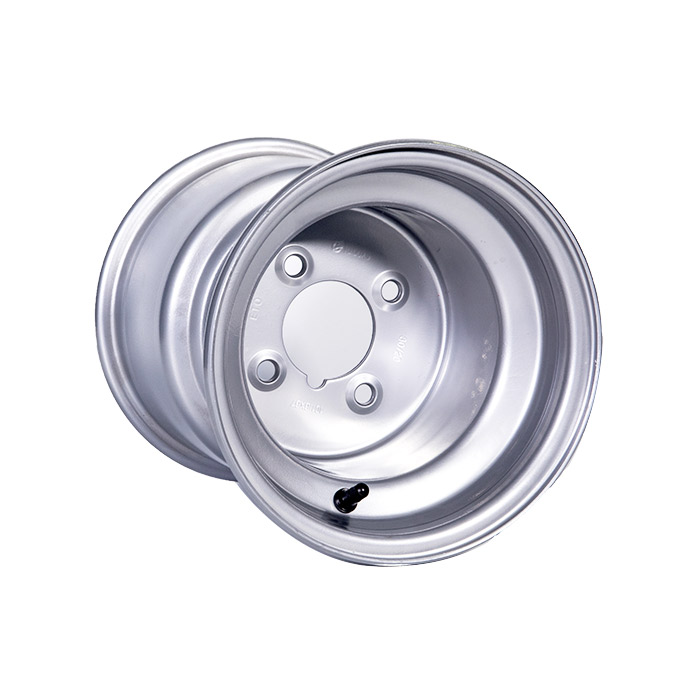

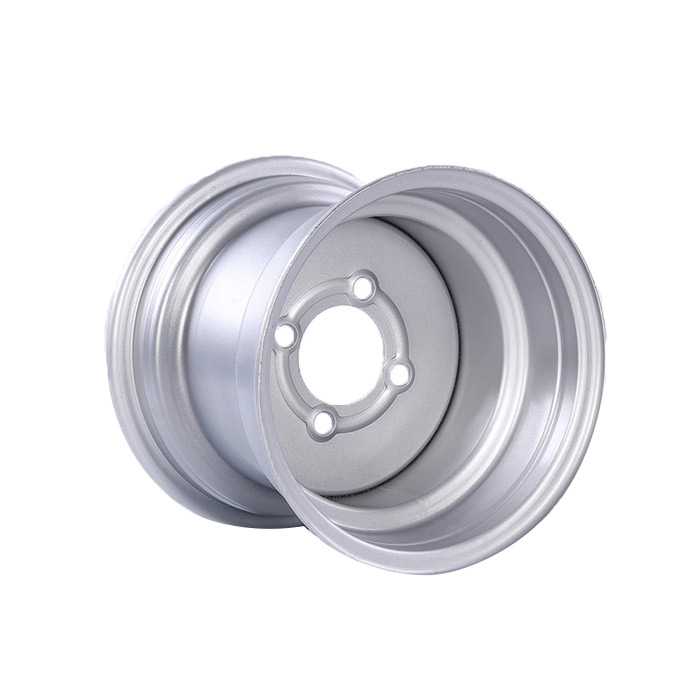

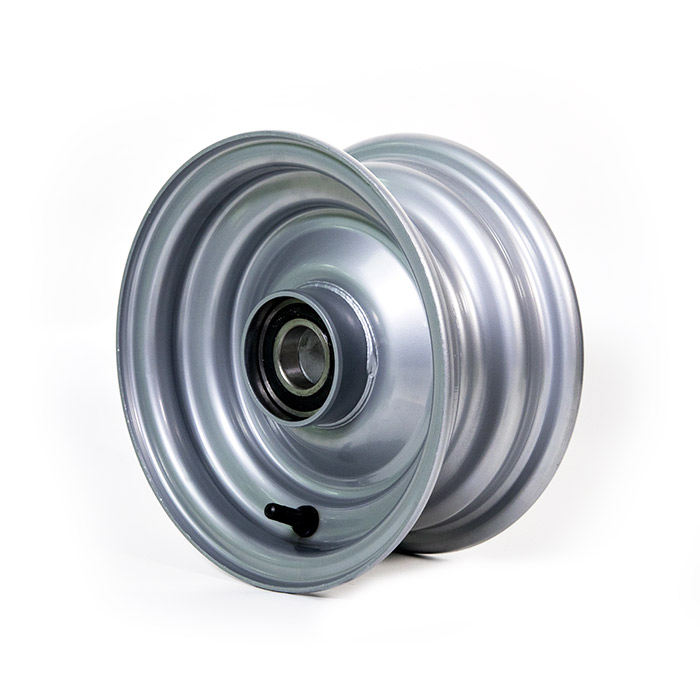

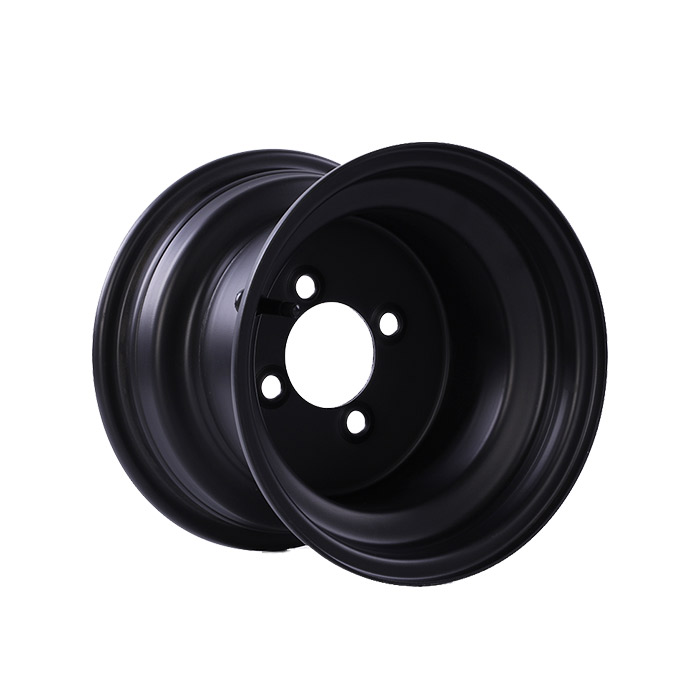

Steel wheel for ATV trailer from 8 inch to 12 inch.
PAINT
Corrosion resistance
Reach: Complied with the latest Reach regulation of European Chemical Agency (ECHA), Which do not contain any of the Substances of Very High Concern(209 SVHCs) listed in the Candidate List with a concentration above 0,1%.
ETRTO STANDARD
All wheels are produced according to ETRTO standard
COMPLETE WHEELS(Wheel assembly)
Forlong can provide the tyre and wheels combination.
We assemble tyres and wheel for customers with top quality pneumatic tyres, Such as LINGLONG, GOODRIDE, WESTLAKE ,WANDA.
Just part of Forlong wheel listed here, for more or customization please contact us direct.
|
Wheel Size |
Assembled Tyre Size |
Bolt Hole |
Bold hole shape |
PCD (mm) |
Central Hole Diameter (mm) |
Offset (mm) |
Load Capacity (60km/h) |
||
| 2.50X8 | 4.00/4.8-8 | 4 | 60°-14.5 | 100 | 60 | 0 | 300KGS | ||
| 4 | 60°-14.5 | 101.6 | 67 | 0 | 300KGS | ||||
| 4 | 60°-14 | 98 | 58.5 | 0 | 300KGS | ||||
| 4 | 90°-12.5 | 115 | 85 | 0 | 300KGS | ||||
| 3.75X8 |
480-8 16X6.5-8 16X7.5-8 |
4 | 60°-14.5 | 100 | 60 | 0 | 400KGS | ||
| 4 | 60°-14.5 | 101.6 | 67 | 0 | 400KGS | ||||
| 4 | 60°-14 | 98 | 58.5 | 0 | 400KGS | ||||
| 5.50X8 |
19X7-8 20X7-8 |
4 | 60°-14.5 | 100 | 60 | 0 | 450KGS | ||
| 4 | 90°-15.5 | 101.6 | 67 | 0 | 450KGS | ||||
| 4 | 60°-14 | 98 | 58.5 | 0 | 450KGS | ||||
| 7.00X8 |
18X8.5-8 18X9.5-8 19x9.5-8 |
4 | 60°-15 | 100 | 60 | 0 | 500KGS | ||
| 4 | 60°-12.5 | 101.6 | 67 | 0 | 500KGS | ||||
| 4 | 60°-14 | 98 | 58.5 | 0 | 500KGS | ||||
| 8.00X8 |
18X8.5-8 18X9.5-8 |
4 | 60°-15 | 100 | 60 | 0 | 500KGS | ||
| 4 | 60°-12.5 | 101.6 | 67 | 0 | 500KGS | ||||
| 4 | 60°-14 | 98 | 58.5 | 0 | 500KGS | ||||
| 9.00X8 | 22X11-8 | 4 | 60°-15 | 100 | 60 | 0 | |||
| 4 | 60°-12.5 | 101.6 | 67 | 0 | |||||
| 4 | 60°-14 | 98 | 58.5 | 0 | |||||
| 10.00X9 | 25X12-9 | 4 | 60°-13.5 | 100 | 60 | 0 | |||
| 4 | 60°-12.5 | 101.6 | 67 | 0 | |||||
| 4 | 60°-14 | 98 | 58.5 | 0 | |||||
| 3.50X10 |
5.00-10 145-10 145R10 |
4 | 60°-14.5 | 100 | 60 | 0 | |||
| 4 | 60°-14.5 | 101.6 | 67 | 0 | |||||
| 4 | 60°-14 | 98 | 58.5 | 0 | |||||
| 4 | 90°-14.3 | 115 | 85 | 0 | |||||
| 6.00X10 |
20X8.00-10 20.5X8.0-10 195/50B10 205/65-10 |
4 | 60°-15.5 | 100 | 60 | 0/-4 | |||
| 4 | 60°-15 | 101.6 | 67 | 0/-4 | |||||
| 4 | 60°-14 | 98 | 58.5 | 0/-4 | |||||
| 4 | R14-18.5 | 130 | 85 | 0/-4 | |||||
| 5 | R14-18.5 | 140 | 94 | 0/-4 | |||||
| 5 | R12-15.5 | 112 | 66.5 | 0/-4 | |||||
| 7.00X10 |
215/65R10 22X9.5-10 |
4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 8.00X10 |
20X10-10 22X11-10 |
4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 4JX12 | 145R12 | 4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 5JX12 |
7.00-12 23X9.5-12 |
4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 6JX12 | 26X8-12 | 4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 7.00X12 |
23X10.5-12 10.0/80-12 |
4 | 60°-14.5 | 101.6 | 67 | 0 | |||
| 5 | 60°-15 | 114.3 | 72 | 0 | |||||
| 5 | R12-15.5 | 112 | 66.5 | 10 | |||||
