FORLONG PROVIDES A FULL RANGE WHEELS FOR RIDING/STAND ON MOWERS

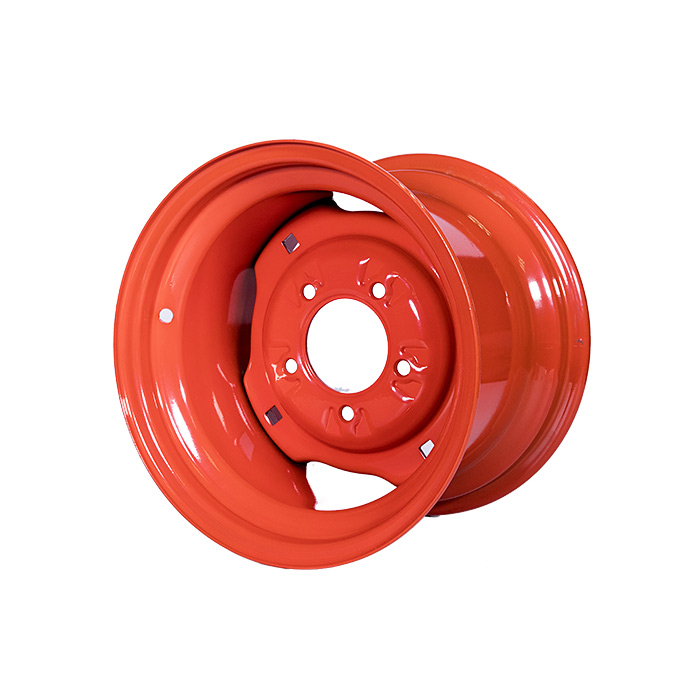

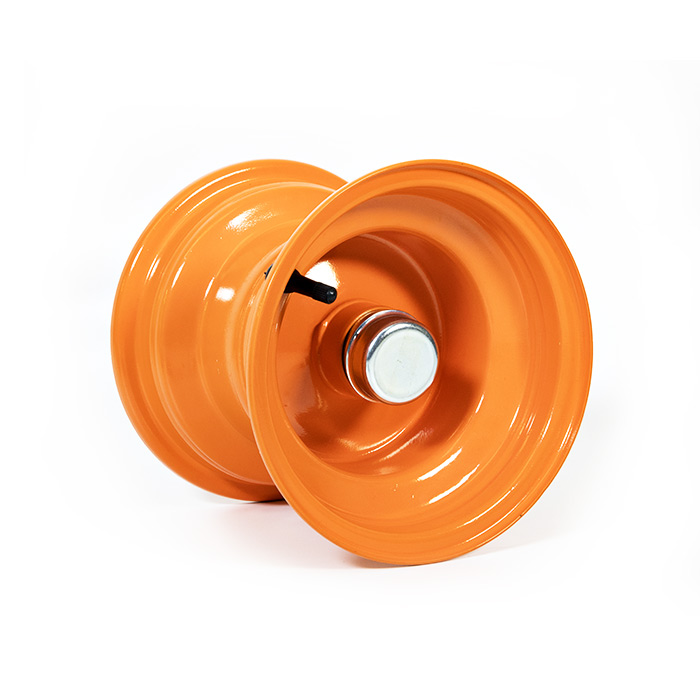

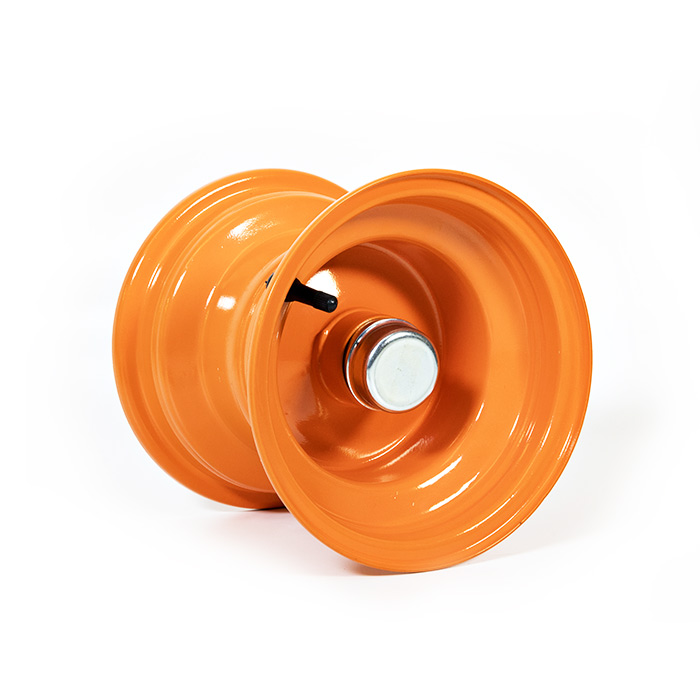

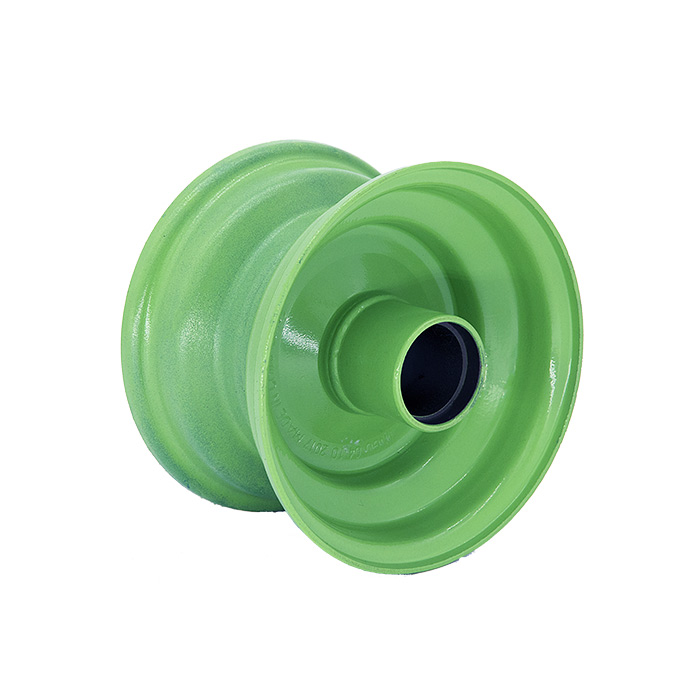

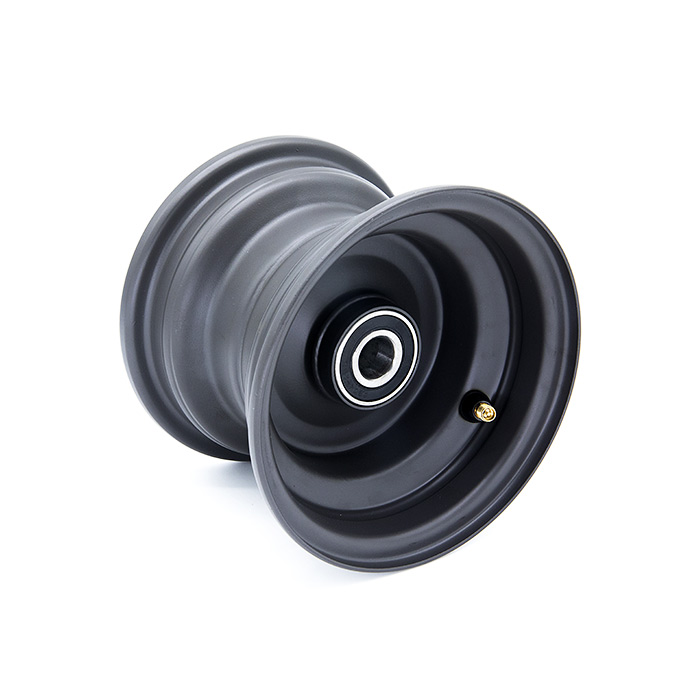

Steel wheel with welded hub ball bearing, roller bearing, Slide bearing
Size from4 inch to 12 inch.
CUSTOMIZATION
The following list of wheel just part of them.
Forlong accepts the customization for all kinds of wheel with welded hub Ball bearing, Roller bearing, Slide bearing, Nylon bush.
DUST CAP
Steel Pressed Cap
Steel Screw Cap
Plastic Pressed Cap
PAINT
Corrosion resistance
Reach: Complied with the latest Reach regulation of European Chemical Agency (ECHA), Which do not contain any of the Substances of Very High Concern(209 SVHCs) listed in the Candidate List with a concentration above 0,1%.
ETRTO STANDARD
All wheels are produced according to ETRTO standard

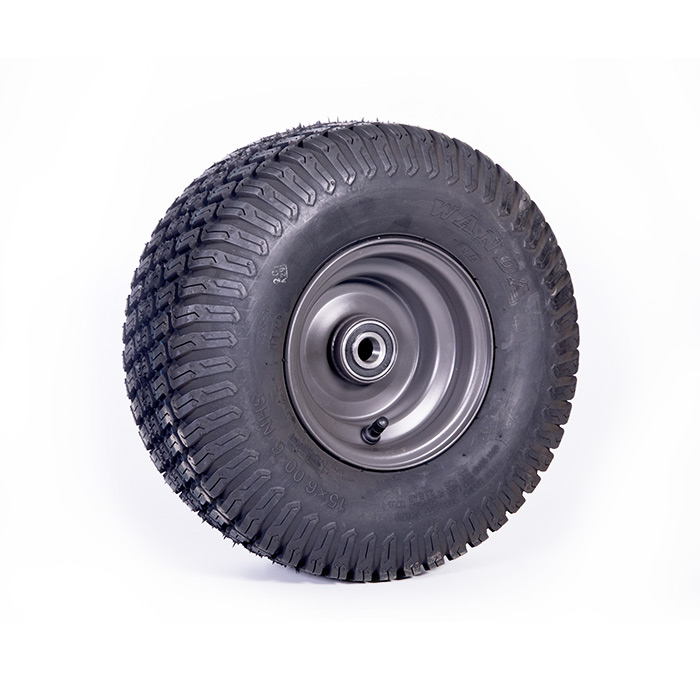

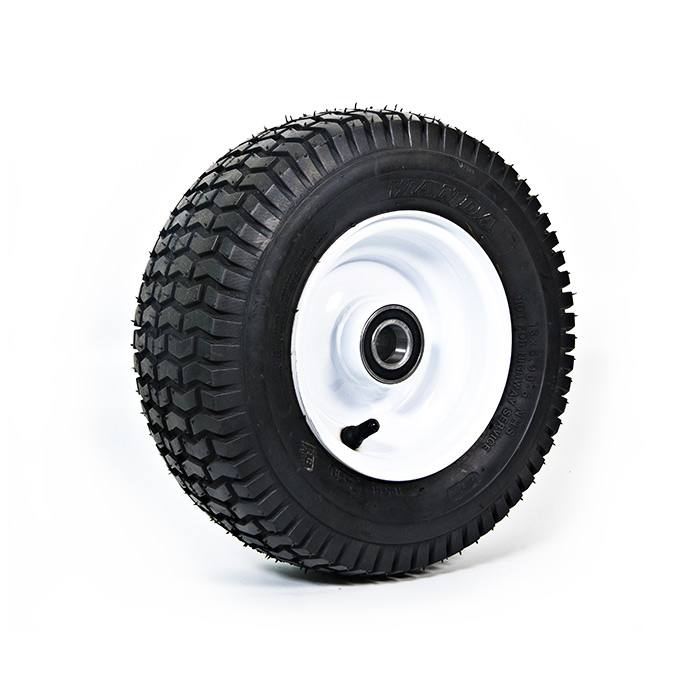

COMPLETE WHEELS(Wheel assembly)
Forlong can provide the tyre and wheels combination.
We assemble tyres and wheel for customers with top quality pneumatic tyres, Such as LINGLONG, GOODRIDE, WESTLAKE ,WANDA.
Just part of Forlong wheel listed here, for more or customization please contact us direct.

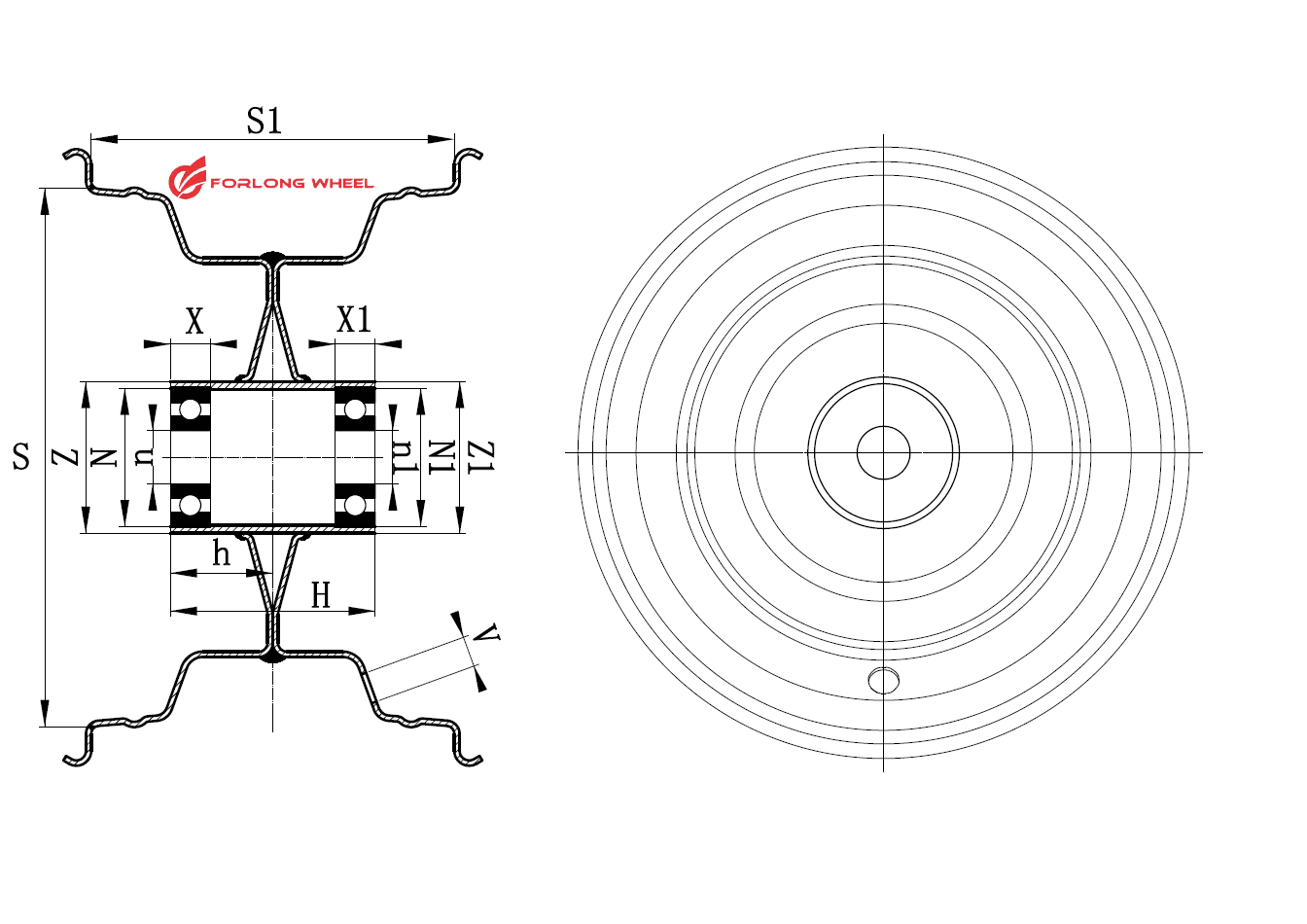

| SIZE | Recommended tyre size | (H) Fitting length /Length of axis tube ( customize) | (N1)Bore Dia.mm | (N)Bore Dia. | Bearing Code | Load/kgs @ 25kms/H |
| 2.10X4 | 4.00-4 | 70 | 20 | 20 | 6204 2RS | 250 |
| 2.10X4 | 4.00-4 | 69 | 25 | 25 | 6205 2RS | 250 |
| 2.10X4 | 4.00-4 | 70 | 25 | 25 | 6205 2ZZ | 250 |
| 2.50X4 | 11X4.00-4 | 70 | 20 | 20 | 6204 2RS | 250 |
| 2.50X4 | 11X4.00-4 | 75 | 20 | 20 | 6204 2RS | 250 |
| 2.50X4 | 11X4.00-4 | 75 | 25 | 25 | 6205 2RS | 250 |
| 3.00X5 | 4.10/3.50-5 | 75 | 20 | 20 | 6204 2RS | 300 |
| 2.50X6 | 4.00-6 | 90 | 25 | 25 | 6205 2RS | 300 |
| 2.50X6 | 4.00-6 | 80 | 25 | 25 | 6205 2ZZ | 300 |
| 3.50X6 | 13X5.00-6 / 13X6.50-6 | 75 | 20 | 20 | 6204 2RS | 300 |
| 3.50X6 | 13X5.00-6 / 13X6.50-6 | 90 | 20 | 20 | 6304 2RS | 300 |
| 3.50X6 | 13X5.00-6 / 13X6.50-6 | 75 | 20 | 20 | 6304 2RS | 300 |
| 4.00X6 | 80 | 25 | 25 | 6205 2ZZ | 300 | |
| 4.50X6 | 13X5.00-6 / 15X6.00-6 | 80 | 25 | 20 | 6205 2RS / 6304 2RS | 300 |
| 4.50X6 | 13X5.00-6 / 15X6.00-6 | 88 | 20 | 20 | 6304 2RS | 355 |
| 4.50X6 | 13X5.00-6 / 15X6.00-6 | 88 | 25 | 25 | 6205 2RS | 355 |
| 4.50X6 | 13X5.00-6 / 15X6.00-6 | 100 | 25 | 25 | 6205 2RS | 355 |
| 2.50X8 | 4.00-8 | 91 | 17 | 17 | 6203 ZZ | 385 |
| 2.50X8 | 4.00-8 | 100 | 25 | 25 | 6205 2RS | 450 |
| 3.00X8 | 5.00-8 | 90 | 35 | 35 | 6007 2RS | 725 |
| 3.00X8 | 5.00-8 | 79 | 25 | 25 | / | 725 |
| 3.00X8 | 5.00-8 | 68 | 35 | 35 | 6207 2RS | 1800 |
| 3.00X8 | 5.00-8 | 100 | 25 | 25 | 6205 2RS | 450 |
| 5.375X8 | 16X6.5-8 | 95 | 25 | 20 | 6205 2RS / 6304 2RS | 450 |
| 5.375X8 | 16X6.5-8 | 90 | 25 | 25 | 6205 2RS | 450 |
| 5.375X8 | 16X6.5-8 | 72 | 25 | 25 | 6205 2RS | 450 |
| 5.50X8 | 16X6.5-8 | 90 | 25 | 25 | 6205 2RS | 450 |
| 5.50X8 | 16X6.5-8 | 100 | 30 | 30 | 6206 2RS | 450 |
| 5.50X8 | 16X6.5-8 | 55 | 19.1 | 19.1 | / | 450 |
| 5.50X8 | 16X6.5-8 | 200 | 30 | 30 | 6006 2RS | 450 |
| 5.50X8 | 18X8.5-8 | 150 | 25 | 25 | 6205 2RS | 615 |
| 5.50X8 | 18X8.5-8 | 85 | 25 | 25 | 6205 2RS | 615 |
| 5.50X8 | 16X6.5-8 | 55 | 19.1 | 19.1 | / | 615 |
| 7.00X8 | 18X8.5-8/ 22X11-8 | 155 | 30 | 30 | 6206 2RS | 470 |
| 7.00X8 | 18X8.5-8/ 22X11-8 | 155 | 30 | 25 | 6206 2RS/6305 2RS | 470 |
| 7.00X8 | 18X8.5-8/ 22X11-8 | 110 | 30 | 30 | 6006 2RS | 470 |
| 7.00X8 | 18X8.5-8/ 22X11-8 | 150 | 30 | 30 | 6206 2RS | 470 |
| 4.00X9 | 6.00-9 | 78 | 35 | 35 | 6207 2RS | 2750 |
| 4.00X9 | 6.00-9 | 68 | 35 | 35 | 6007 2RS | 2750 |
| 4.00X9 | 6.00-9 | 95 | 35 | 30 | 6007 2RS / 6206 2RS | 2750 |
| 6.00X10 | 20.5X8.00-10 | 127 | 35 | 30 | 6007 2RS / 6206 2RS | 580 |
