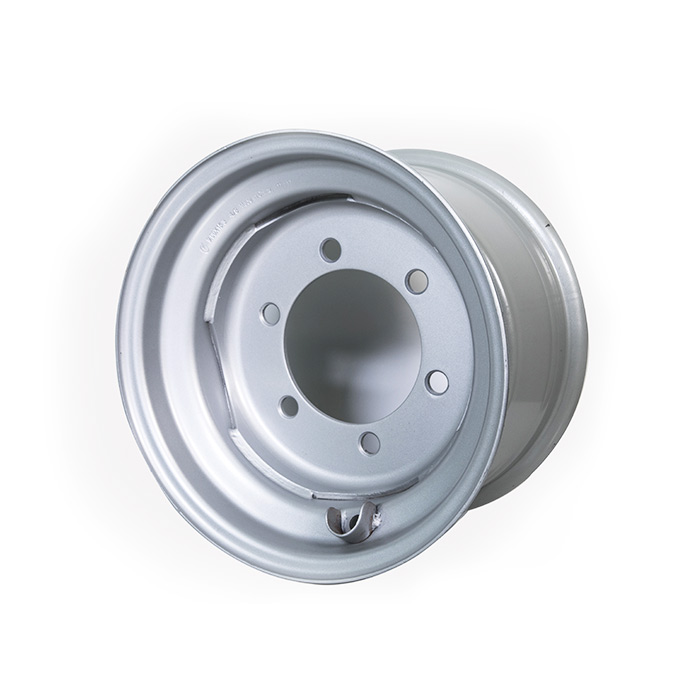

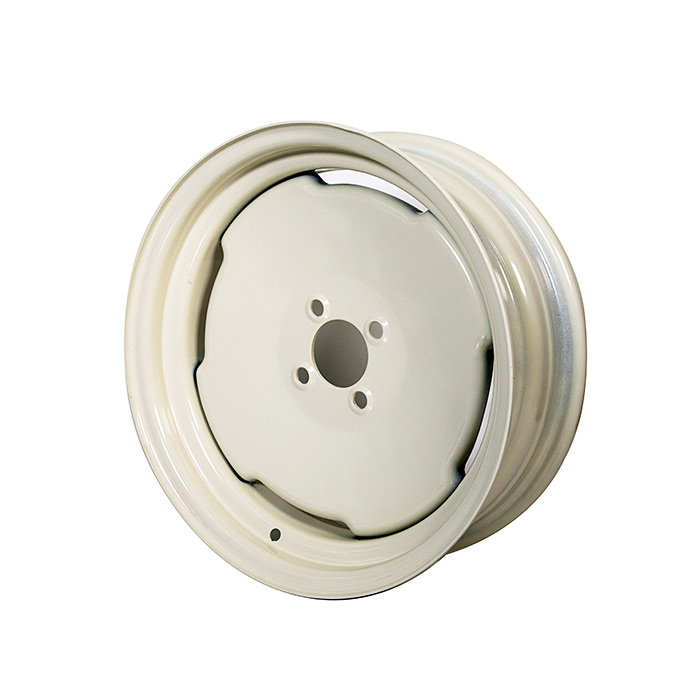

FORLONG PROVIDES A FULL RANGE WHEELS FOR TRAILER SPRAYER
From 8-24 inches with Bearing Hub or PCD connection.
PAINT
Corrosion resistance
Reach: Complied with the latest Reach regulation of European Chemical Agency (ECHA), Which do not contain any of the Substances of Very High Concern(209 SVHCs) listed in the Candidate List with a concentration above 0,1%.
ETRTO STANDARD
All wheels are produced according to ETRTO standard

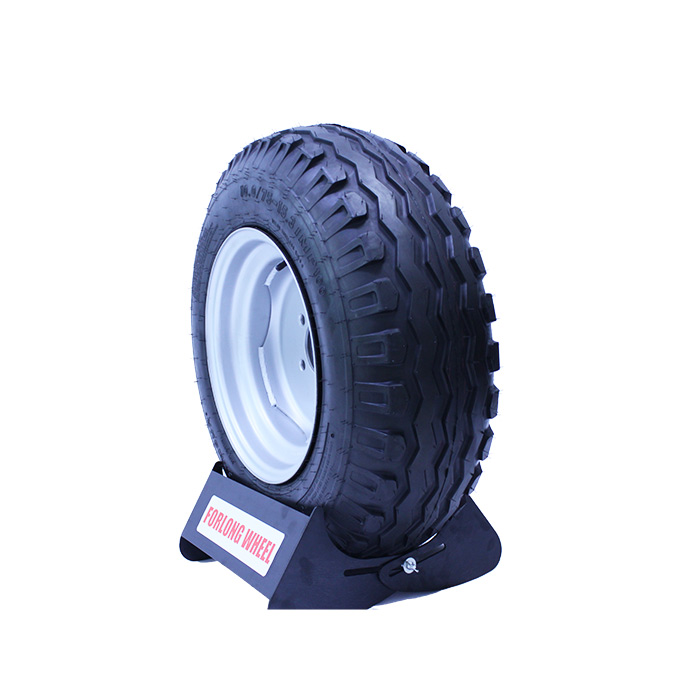

COMPLETE WHEELS(Wheel assembly)
Forlong can provide the tyre and wheels combination.
We assemble tyres and wheel for customers with top quality pneumatic tyres, Such as ARMOUR, ADVANCE.
Just part of Forlong wheel listed here, for more or customization please contact us direct.
|
Wheel Size |
Assembled Tyre Size |
Bolt Hole | Bold hole shape |
PCD (mm) |
Central Hole Diameter (mm) |
Offset (mm) |
Load
Capacity (40km/h) |
EAN CODE |
| 5.50X8 | 17X8-8 | 4 | 60° - 15.5 | 101.6 | 67 | 0 | 500KGS | |
| 7.00x8 | 18x8.50-8 | 4 | 60° - 15.5 | 101.6 | 67 | 0 | 500KGS | |
| 7.00X12 |
23X8.50-12 10.0/80-12 |
4 | 60° - 15.5 | 98 | 58.5 | 0 | 1500KGS | |
| 4 | 60° - 15.5 | 100 | 57 | 0 | 1500KGS | |||
| 5 | R12-15.5 | 112 | 66.5 | 0 | 1500KGS | |||
| 5 | R14-18.5 | 140 | 94 | 0 | 1500KGS | 6972209751639 | ||
| 6 | R16-21.5 | 205 | 161 | 0 | 1500KGS | |||
| 9.00X15.3 | 10.0/75-15.3 11.5/80-15.3 12.5/80-15.3 | 5 | R14-18.5 | 140 | 94 | 0 | 2040KGS | 6972209751509 |
| 6 | R14-18.5 | 140 | 100 | -6 / 0 | 2000KGS | 6972209751516 | ||
| 6 | R16-21.5 | 205 | 161 | -6 / 0 | 2000KGS | 6972209751516 | ||
| 6 | R16-21.5 | 205 | 161 | -6 / 0 | 2700KGS | 6972209751523 | ||
| 6 | R16-21.5 | 205 | 161 | -6 / 0 | 3350KGS | 6972209751530 | ||
| 5 | R16-22 | 203.2 | 150 | 0 | 3350KGS | 6972209751547 | ||
| 13.00X15.5 | 400/60-15.5 | 6 | R16-21.5 | 205 | 161 | 0 | 3800KGS |
Catalogue of Forlong.pdf
