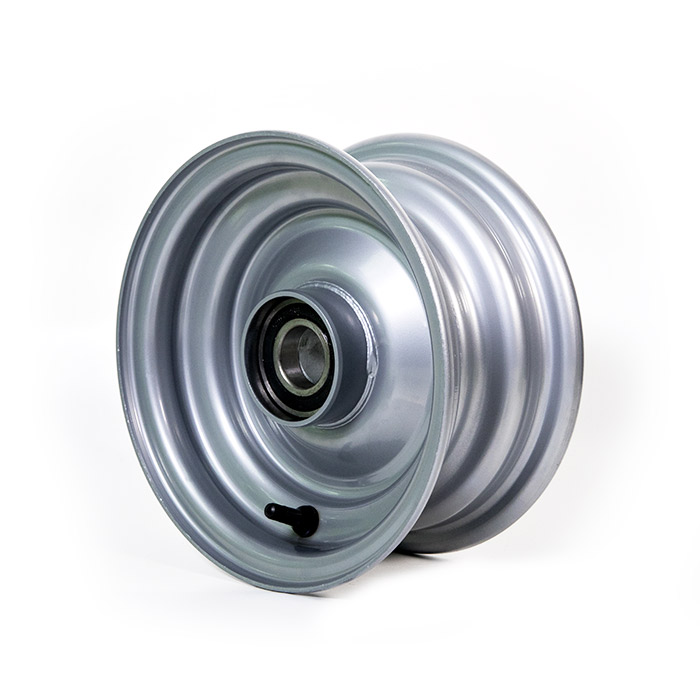

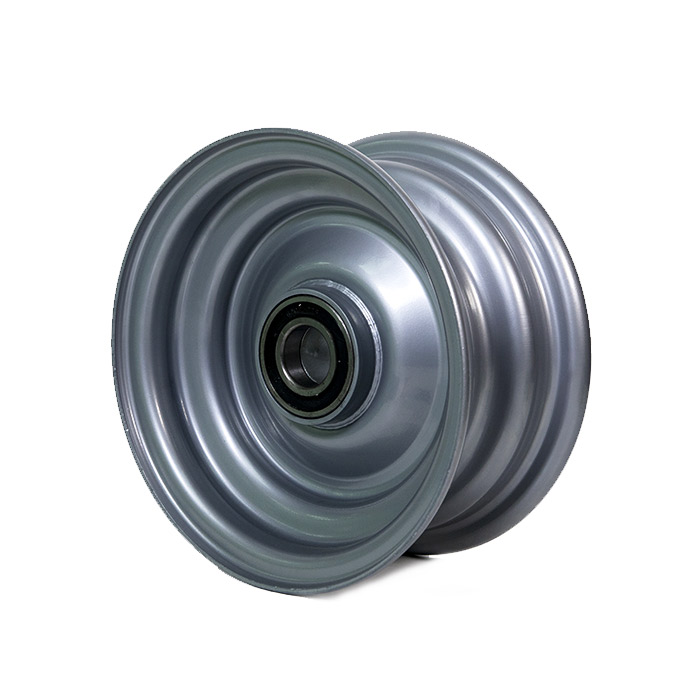

FORLONG PROVIDES A FULL RANGE WHEELS FOR STATIC TRAILERS (MOBILE HOME)
3.00X8” &4.00X9” With capacity 2750kgs@25kms/h.
The bespoke Hub tube can fit full the requirement of the customer.
Can assemble both with tube tyre and tubeless tyre.
PAINT
Corrosion resistance
Reach: Complied with the latest Reach regulation of European Chemical Agency (ECHA), Which do not contain any of the Substances of Very High Concern(209 SVHCs) listed in the Candidate List with a concentration above 0,1%.
ETRTO STANDARD
All wheels are produced according to ETRTO standard
COMPLETE WHEELS(Wheel assembly)
Forlong can provide the tyre and wheels combination.
We assemble tyres and wheel for customers with top quality pneumatic tyres, Such as LINGLONG, GOODRIDE, WESTLAKE, WANDA.
Just part of Forlong wheel listed here, for more or customization please contact us direct.
| SIZE | Recommended tyre size | (H) Fitting length /Length of axis tube ( customize) | (N1)Bore Dia.mm | (N)Bore Dia. | Bearing Code | Load/kgs @ 25kms/H |
| 3.00X8 | 5.00-8 | 68/78 | 35 | 35 | 6207 2RS | 2750 |
| 4.00X9 | 6.00-9 | 78 | 35 | 35 | 6207 2RS | 2750 |
| 4.00X9 | 6.00-9 | 68 | 35 | 35 | 6007 2RS | 2750 |
| 4.00X9 | 6.00-9 | 95 | 35 | 30 | 6007 2RS / 6206 2RS | 2750 |
Customization according with the requirement of the Customers. Please contact us freely. Let us know your details of the rim.
The application of wheel rims were for very low speed with high loading capacity.
More detail, Please contact us freely
Catalogue of Forlong.pdf
