Product classification

Other Parts -Axles, Jack Stand

FORLONG PROVIDES SOME OTHER PART OF AGRICULTURAL IMPLEMENT

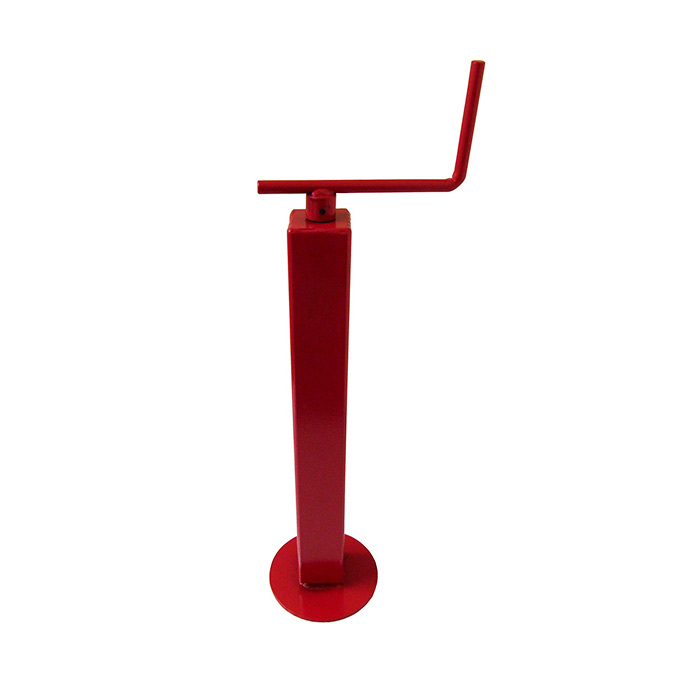

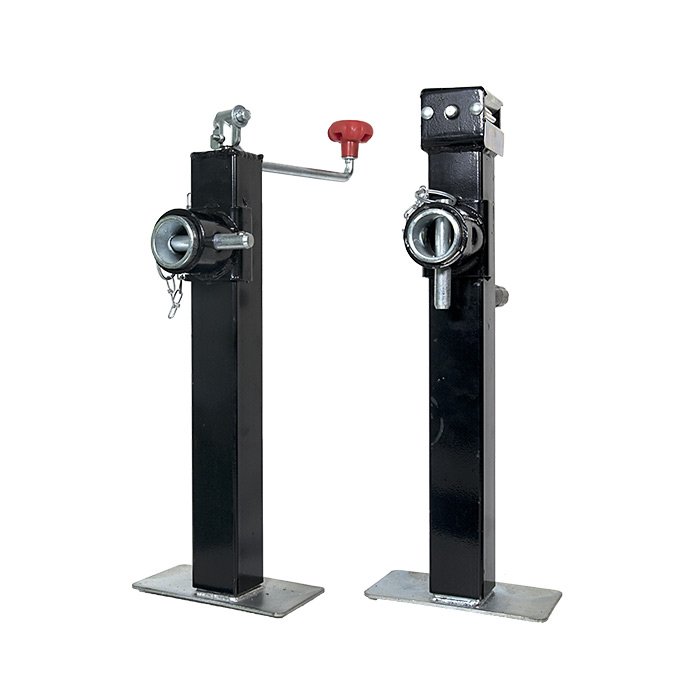

Stub axles, Jack Stand, Towing Eyes, Drive Shaft, Spring…

Customization according with the requirement of the Customers.

Specification
Description

Just part of Forlong wheel listed here, for more or customization please contact us direct.

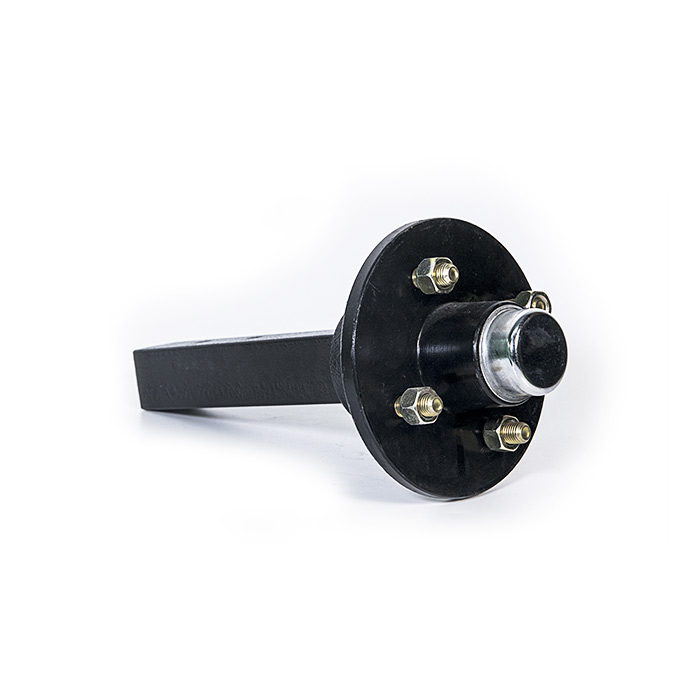

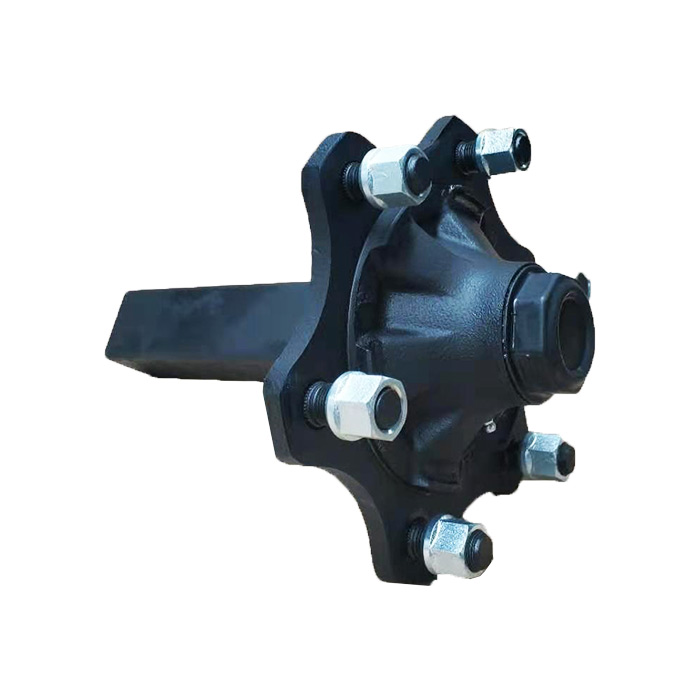

Stub Axle
Φmm	Bolt/ A-B (mm)	L(mm)	C(mm)	Load Capacity (KGS)
40	4 Hole 84-135	100/200/ Customization	240	950 KGS
40	4 Hole 58-98	100/200/ Customization	240	950 KGS
40	4 Hole 61-95	100/200/ Customization	240	950 KGS
40	4 Hole 56-100	100/200/ Customization	240	950 KGS
40	5 Hole 65-112	100/200/ Customization	240	950 KGS
40	5 Hole 93-140	100/200/ Customization	240	950 KGS
50	5 Hole 93-140	100/200/ Customization	250	2500KGS
50	6 Hole 160-205	100/200/ Customization	250	2500KGS
60	5 Hole 93-140	100/200/ Customization	250	3500KGS
60	6 Hole 160-205	100/200/ Customization	250	3500KGS
70	6 Hole 160-205	100/200/ Customization	250	4500KGS
80	6 Hole 160-205	100/200/ Customization	250	5500KGS
